PCB assembly

One-Stop PCB Assembly Services

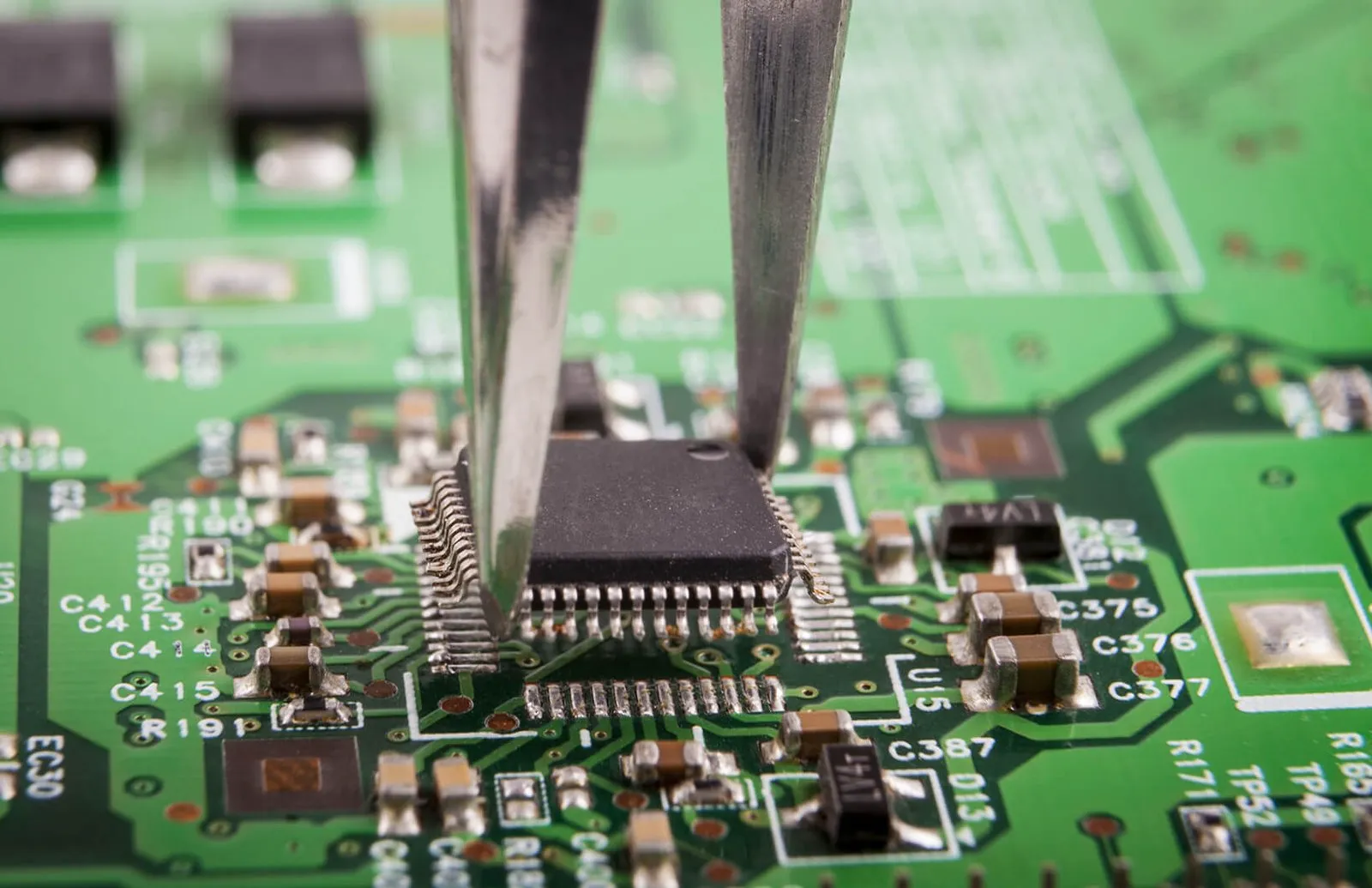

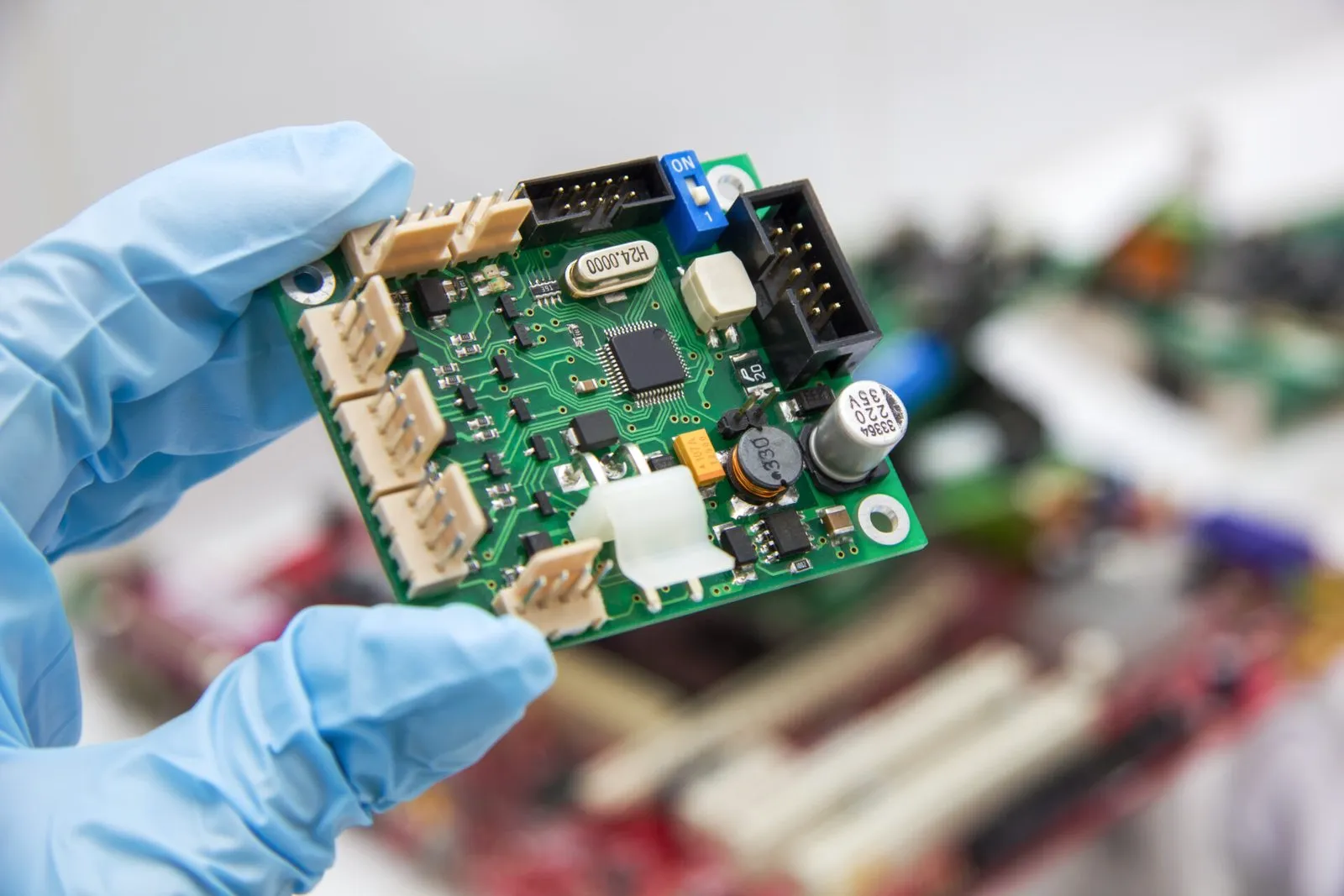

Printed circuit assembly or PCB assembly is the process of mounting electronic components on a printed circuit board to produce a PCBA, which is a module that can be assembled with other parts into a final product or system.

Circuit board assembly services are also known as electronic assembly service, or circuit board assembly service.

PCB assembly services play a key role in the electronics industry, as PCB assembly companies, original equipment manufacturers (OEMs), component suppliers and PCB material suppliers are involved in PCB assembly, and all electronic products require PCB assembly. PCB Assembly Services at ADIVA Tech Services offer:

• PCB Fabrication: ADIVA Tech Services offers all types of printed circuit board manufacturing from prototyping to bulk production such as FR4, flexible, rigid, ceramic, MCPCBs etc. You just need to send Gerber.

• SMT (Surface Mount Technology) Assembly: SMT is an automated printed circuit assembly process. It includes solder paste printing, SPI (solder paste inspection), SMD placement, X-ray inspection, visual inspection, re-soldering and AOI (automatic optical inspection).

• THT (Through Hole Technology) assembly: THT is a semi-automatic PCB assembly process. THT components are pushed through the holes by hand or machine, after which the PCBA is preheated and wave soldered. At ADIVA Tech Services, we use German Ersa selection wave soldering machines to ensure solder quality.

• FAI(First Article Inspection): ADIVA Tech Services offers FAI for PCB assembly. We make 5 PCBAs and randomly select one piece to check each component. An FAI report is then prepared for review. We will start mass production of PCBA only with your approval.

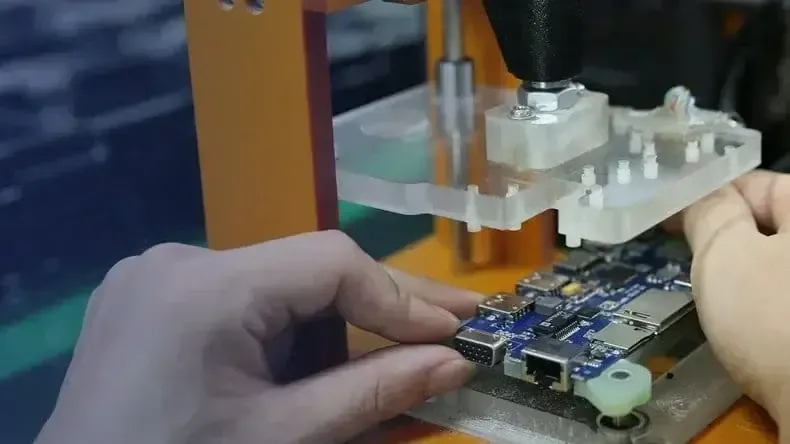

• Functional Testing: This is an initial test. The PCBAs are placed in the jig one by one to test their functionality.

• Value-Added Services: ADIVA Tech Services offers complete add-on services from PCB post-assembly to the receipt of finished products, including:

• Conformal coating: PCBAs are coated with urethane/polyurethane to protect the boards from dust, moisture, chemicals, vibration and high temperatures, which extends their service life. At ADIVA Tech Services, we use an electrostatic spray method for adaptive coating that achieves the best uniformity.

• IC Programming: IC programming means loading a program into an IC. ADIVA Tech Services does not collect your program data.

• Burn-In test: Burn test is also called thermal aging test. In a programmable temperature chamber, the PCBAs are continuously operated for 48-168 hours to see if they are reliable for long-term operation.

• Box build assembly: Box sets are finished products. We can assemble the PCBA with the case and label them with your brand. You just need to send us the PCBA matching case design.

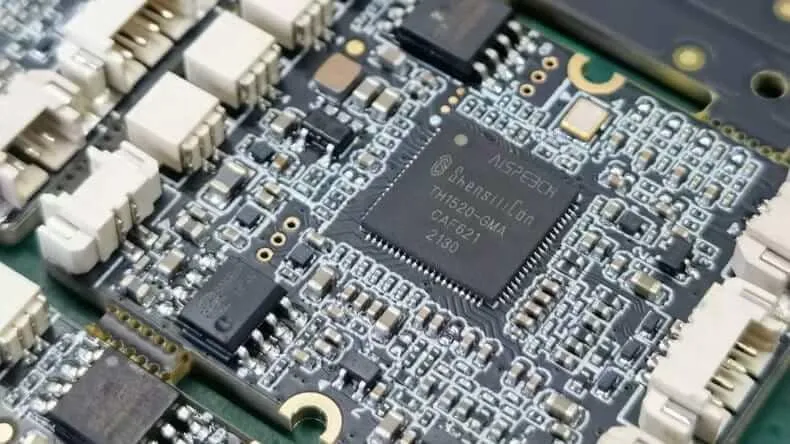

PCB assembly testing

PCB assembly testing includes online PCBA tests and PCBA tests at the post-assembly stage. EMS PCBA manufacturer ADIVA Tech Services has a strict quality assurance system with extensive PCBA tests

• SPI(Solder Paste Inspection): SPI is performed after solder paste is printed on PCBs and before SMDs are placed on boards. The SPI machine scans the solder paste and compares its shape, size, thickness and position with the pre-feed parameters. Solder paste thickness should be ±0.03mm of SMT pattern thickness.
• X-ray inspection: If PCBs are assembled with BGA, they should be X-rayed before resale. The X-ray machine inspects the connections between the PCB and BGA to ensure solderability.
• AOI (Automatic Optical Inspection): After reflow soldering, the AOI machine scans the surface of the PCB/PCBA and compares it with the pre-feeding parameters for to identify the PCBA. defects such as solder bridges, voids, tombstones, etc. ADIVA Tech Services has AOI 3D which covers more surfaces than 2.5D AOI.
• Visual inspection: Before re-soldering and after wave soldering and before and after wave soldering, QC members carefully visually inspect the PCBA to ensure the quality.
• Application Simulation Test: after installing the PCBA as a package, simulate its working environment and let it work for a long time to check the functions.

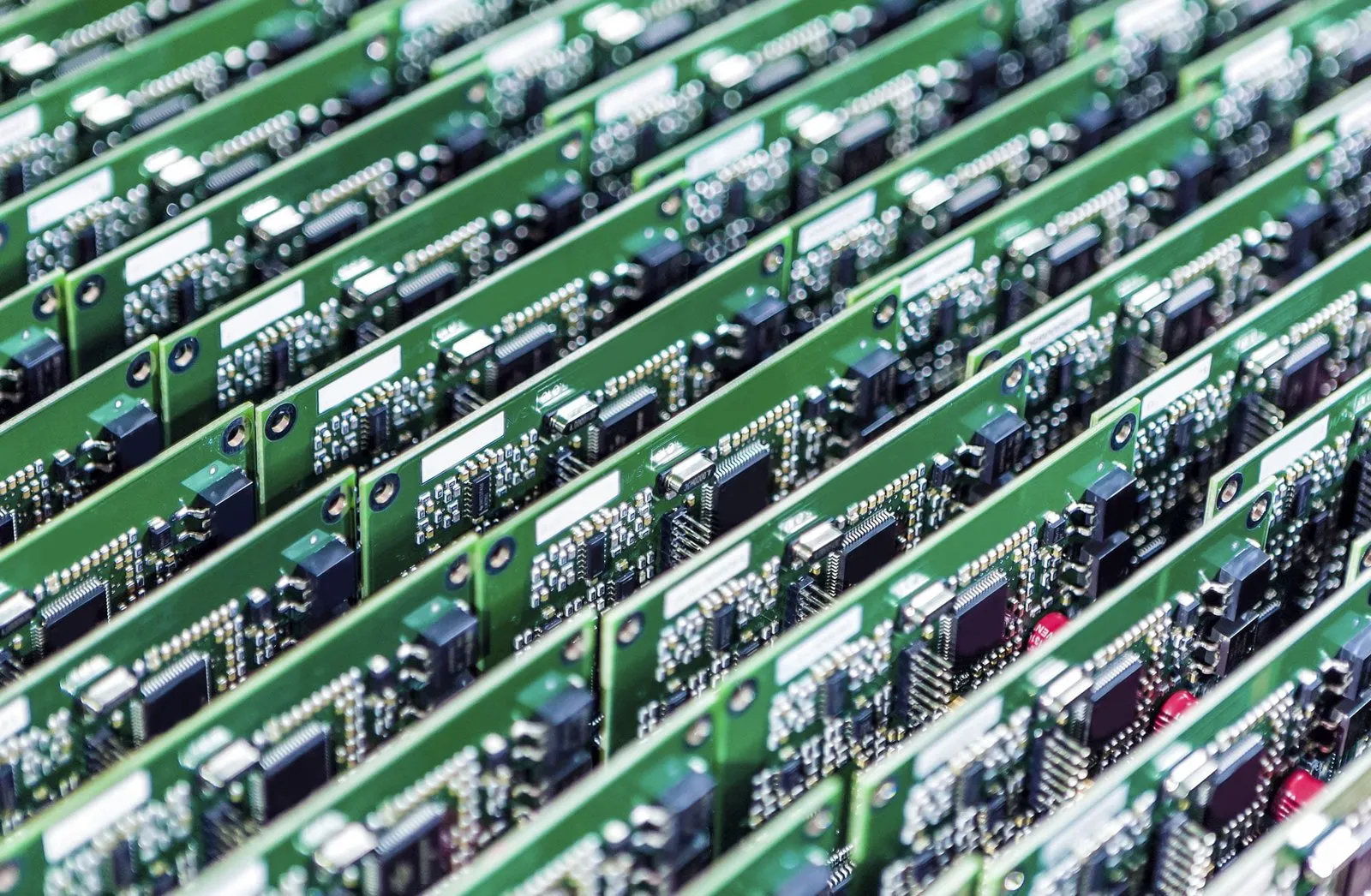

One-Stop PCB Assembly Company Kenoxis Technologies

Kenoxis Technologies is a PCB assembly manufacturer with an advanced PCB assembly plant located in Shenzhen. It offers PCB manufacturing, component sourcing, PCB assembly and PCBA value-added services.

Kenoxis Technologies PCB assembly company serves original equipment manufacturers (OEMs), research institutes and business decision makers around the world. For more than 5 years, we have rich experience in PCB assembly in automotive, industrial, defense, medical, computing, communication, agricultural and consumer electronics.

one-stop PCB assembly services include free PCB Design for Manufacturing (DFM) and Test (DFT), PCBA Design for Assembly (DFA), and Box Structure Design for Excellence (DFX).

Kenoxis Technologies Electronic Manufacturing Services (EMS) factory for PCB assembly is dust-free. Each process has a team member who specializes in on-site quality control (QC) independent of our quality control system to avoid poor quality PCBAs.

If you need quality and cheap PCB kit, you can send your Gerber, product list and choose. -and-place file to support@kenoxistechnologies.com to quote.

Printed Circuit Board Assembly Capabilities

Uses for PCB assembly services include:

• PCB assembly that complies with IPC-A-610 Class 1 is used for consumer and general electronics.
• Long-lasting communication, industrial, and commercial equipment are served by PCB assembly that complies with IPC-A-610 Class 2.
• Precision instruments, aerospace, medical, and other high-reliability equipment are served by PCB assembly that complies with IPC-A-610 Class 3.
• gadgets including laptops, satellites, batteries, sensors, cameras, LED lights, and gastroscopy machines.
